Welcome to explore our professional Injection Stretch Blow Molding Machine. This fully automatic one-step ISBM equipment integrates injection, stretch blowing and ejection in one unit. Featuring energy efficiency, stable performance and high output, it works perfectly with PET, PP, PC and other materials. Ideal for producing pharmaceutical, cosmetic, beverage and daily-use plastic containers. We deliver reliable machines and thoughtful support for your production.
Injection Stretch Blow Molding Machine Introduce

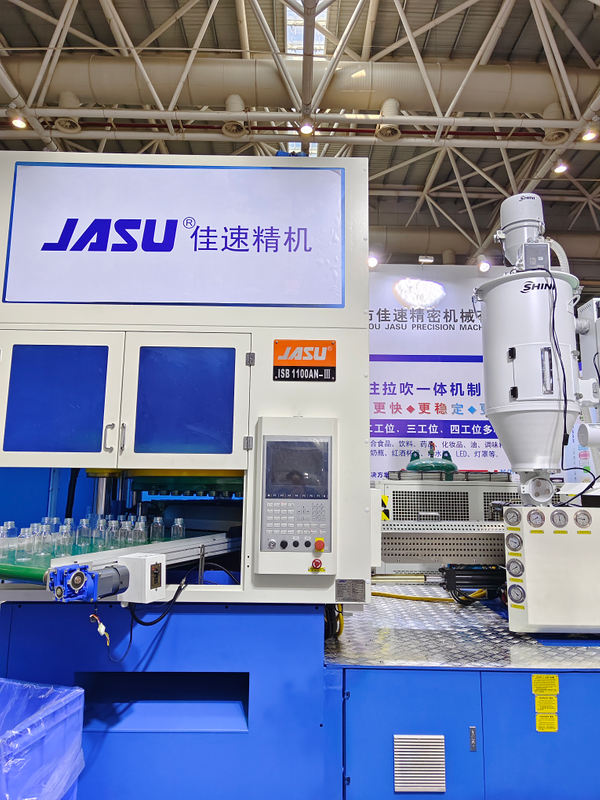

Our Injection Stretch Blow Molding Machine is a one-step automatic unit combining preform injection, stretch blowing and finished product ejection. Built with a 3-station rotary structure, it utilizes residual heat to cut energy consumption greatly. Compatible with PET, PP, PC and more materials, it delivers containers with even wall thickness and smooth surface. Widely applied to pharmaceutical, cosmetic, beverage, lighting and daily plastic products. Featuring stable operation, high output and low maintenance, this CE-certified equipment is your ideal choice for efficient container production.

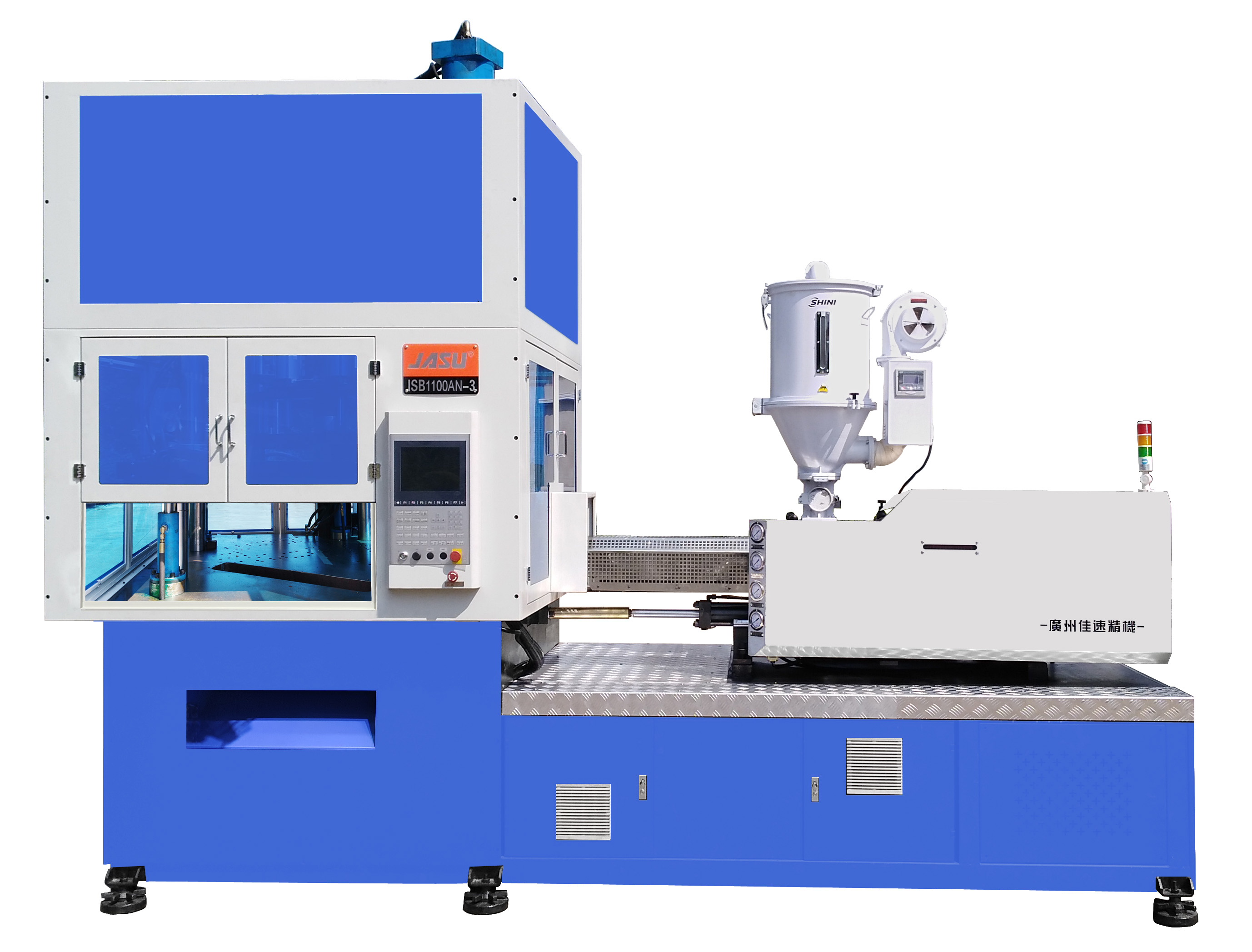

Injection Stretch Blow Molding Machine
Injection Stretch Blow Molding Machine Advantages
Our injection stretch blow molding machine stands out with outstanding strengths in performance, cost control and product quality. Below are its core advantages for your reference.

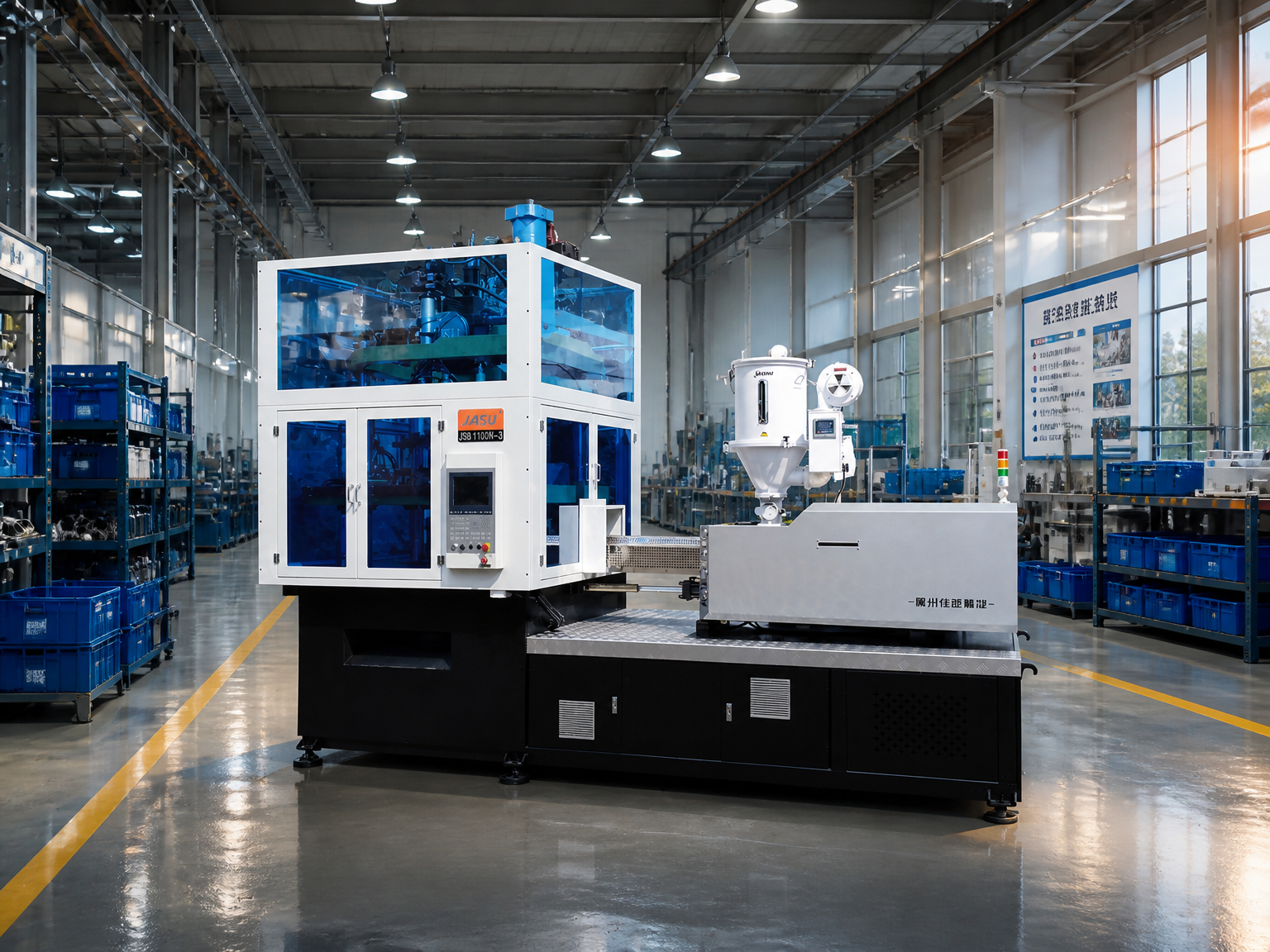

Superior Performance & Cost Efficiency
This one-step ISBM machine adopts a 3-station rotary design, utilizing preform residual heat to slash energy use significantly. It runs fully automatically with fast cycle time and high output, while compact structure saves floor space. It also reduces material waste and labor costs, bringing great economic benefits for production.

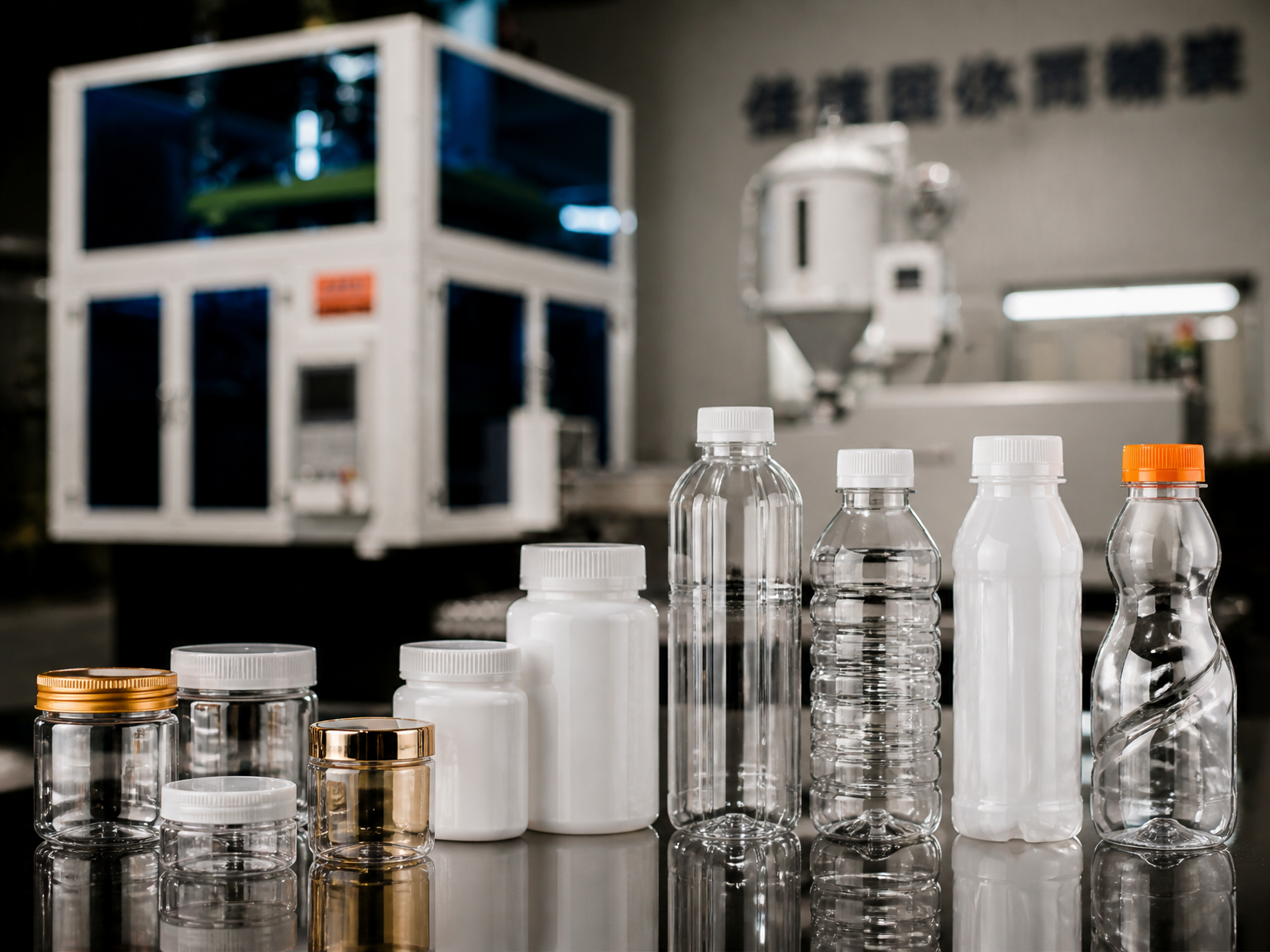

Reliable Quality & Wide Adaptability
Equipped with premium brand components, the machine ensures stable long-term operation. It produces containers with uniform wall thickness, high transparency and firm structure. Compatible with PET, PP, PC and other materials, it fits pharmaceutical, cosmetic, beverage, lighting and daily product manufacturing, and supports customized molds for diverse needs.
Injection Stretch Blow Molding Machine Technical Specifications
Below are the detailed technical parameters of our injection stretch blow molding machine. All specifications are designed to ensure stable performance and flexible production for diverse container manufacturing demands.

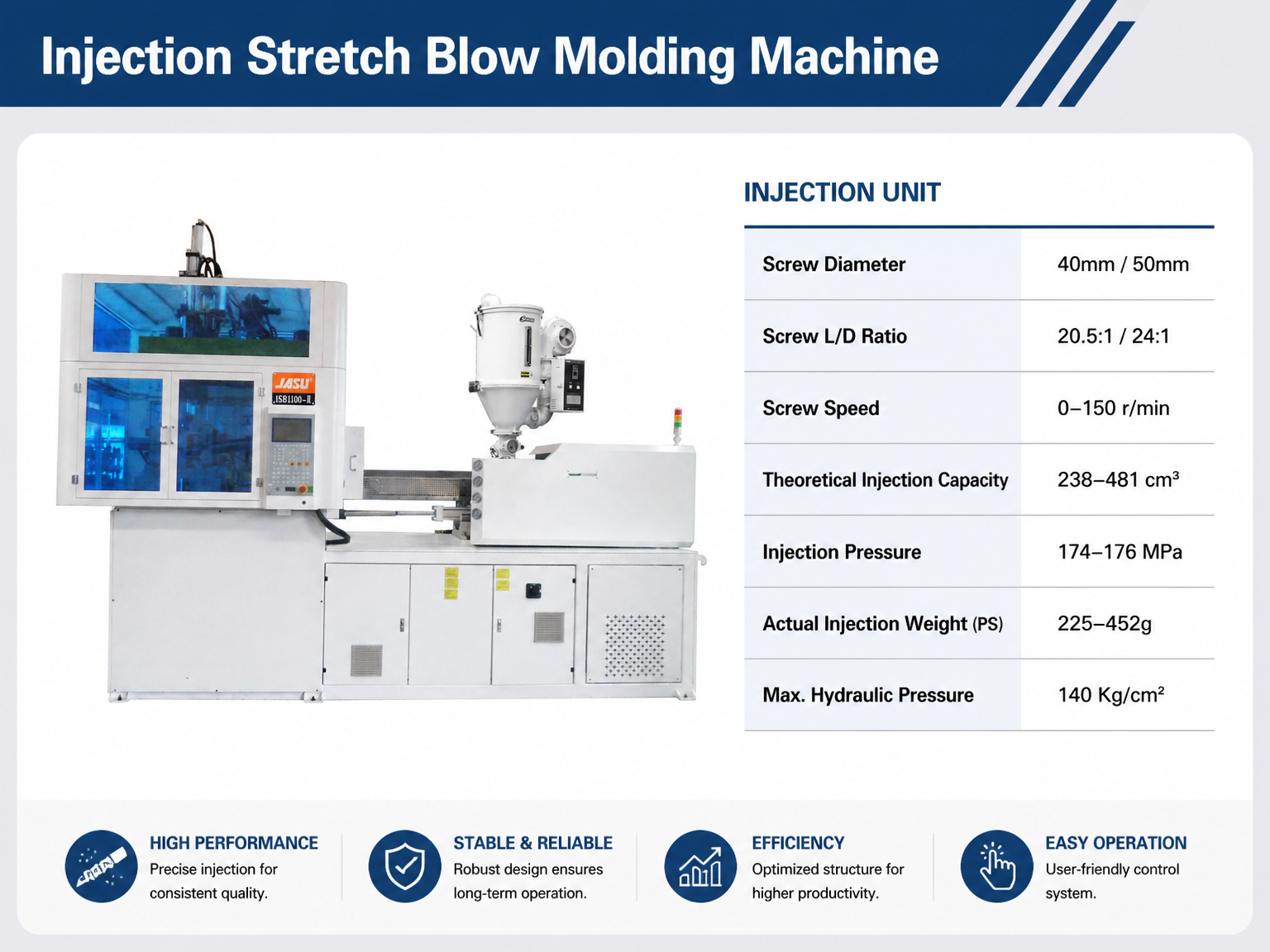

Injection Unit
Screw Diameter: 40mm / 50mm Screw L/D Ratio: 20.5:1 / 24:1 Screw Speed: 0–150 r/min Theoretical Injection Capacity: 238–481 cm³ Injection Pressure: 174–176 MPa Actual Injection Weight (PS): 225–452g Max. Hydraulic Pressure: 140 Kg/cm²

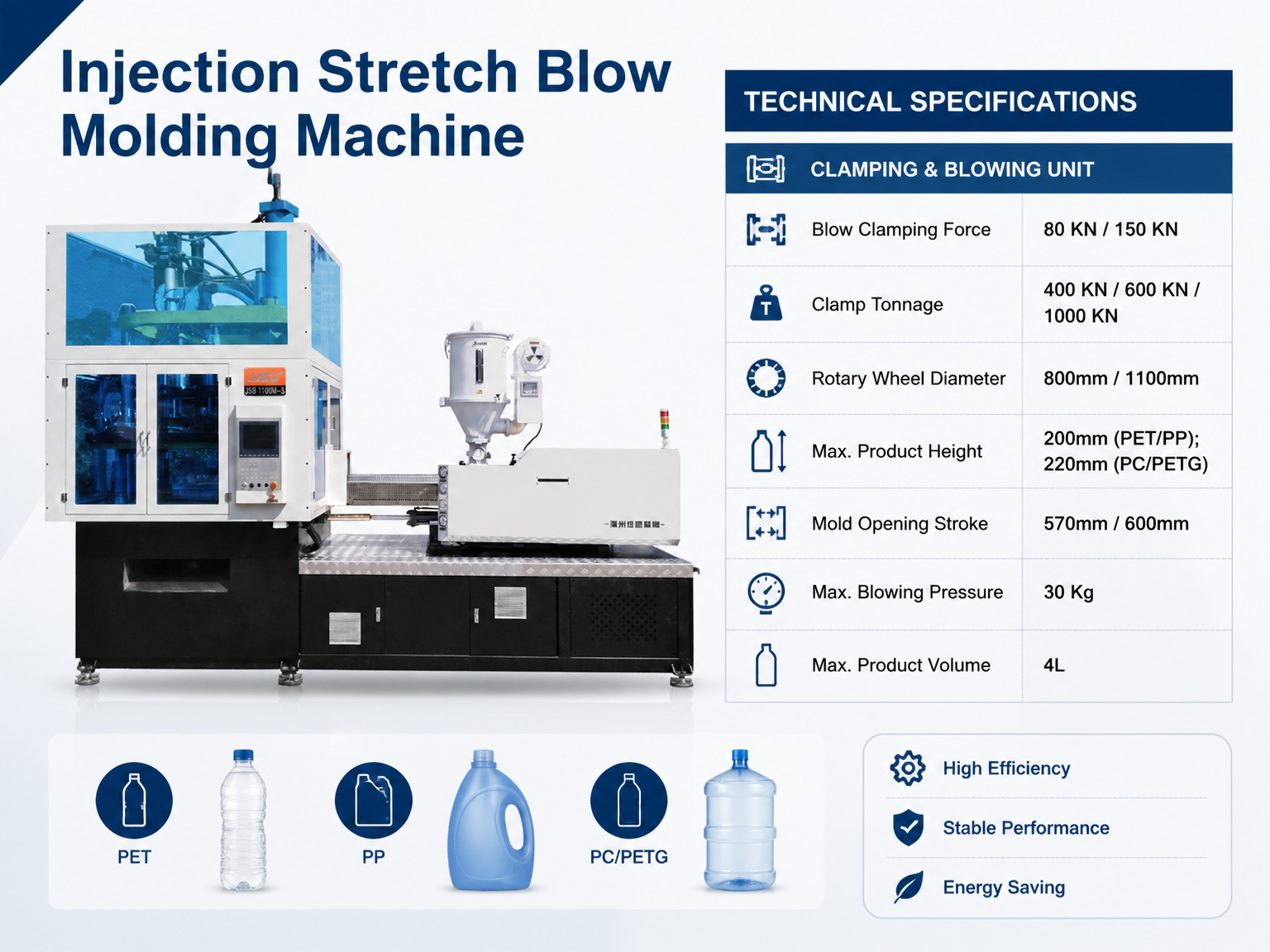

Clamping & Blowing Unit
Blow Clamping Force: 80 KN / 150 KN Clamp Tonnage: 400 KN / 600 KN / 1000 KN Rotary Wheel Diameter: 800mm / 1100mm Max. Product Height: 200mm (PET/PP); 220mm (PC/PETG) Mold Opening Stroke: 570mm / 600mm Max. Blowing Pressure: 30 Kg Max. Product Volume: 4L

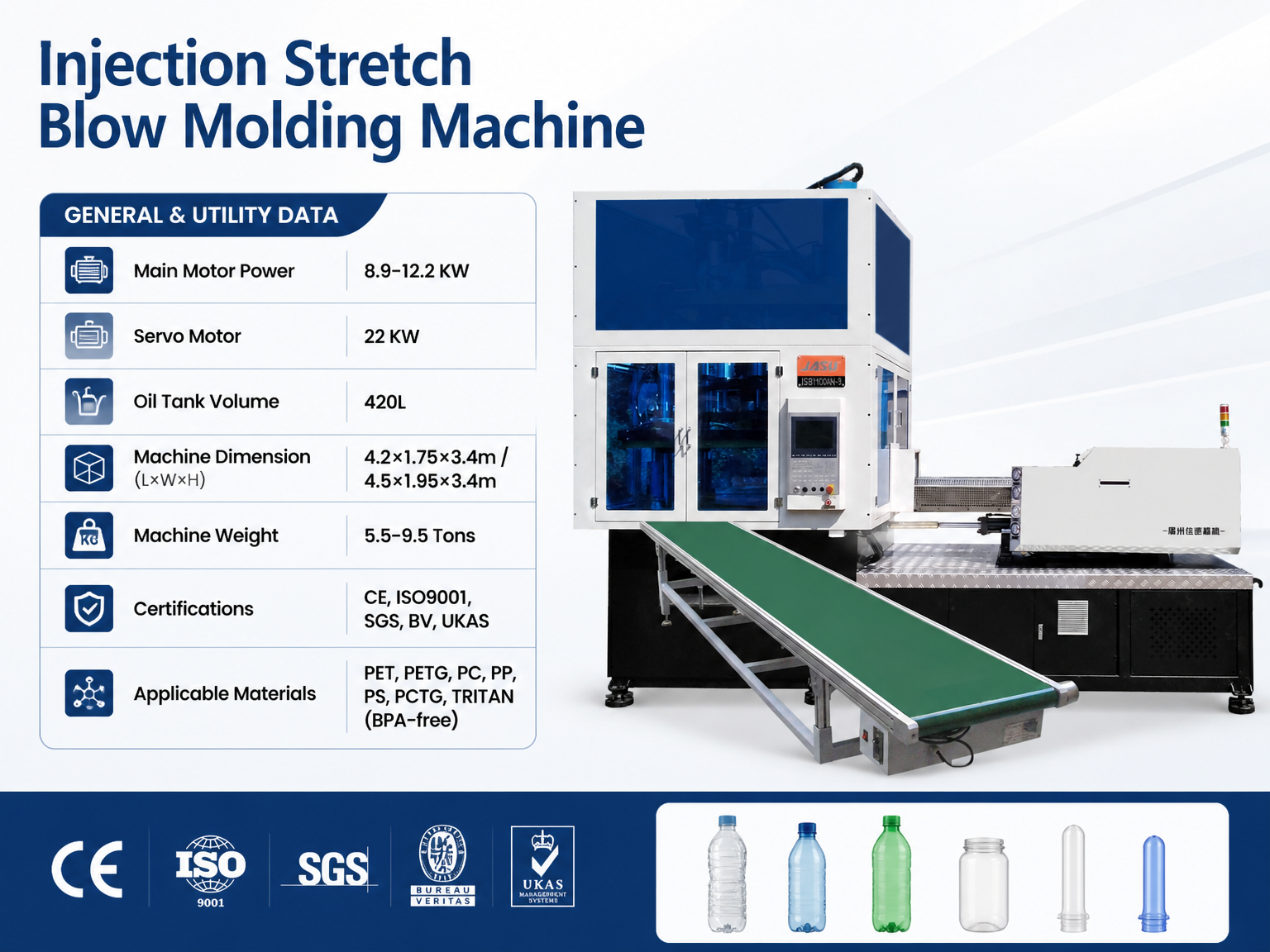

General & Utility Data
Main Motor Power: 8.9–12.2 KW Servo Motor: 22 KW Oil Tank Volume: 420L Machine Dimension (L×W×H): 4.2×1.75×3.4m / 4.5×1.95×3.4m Machine Weight: 5.5–9.5 Tons Certifications: CE, ISO9001, SGS, BV, UKAS Applicable Materials: PET, PETG, PC, PP, PS, PCTG, TRITAN (BPA-free)
Application

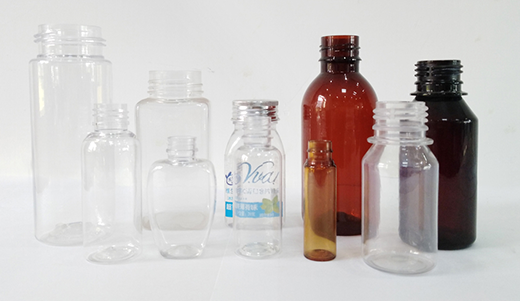

Pharmaceutical & Healthcare
Ideal for medicine bottles, oral liquid bottles, eyedropper bottles, and disinfectant containers. Manufactured from PET, PP, and PC, meeting strict hygiene standards with precise neck dimensions and smooth surfaces.

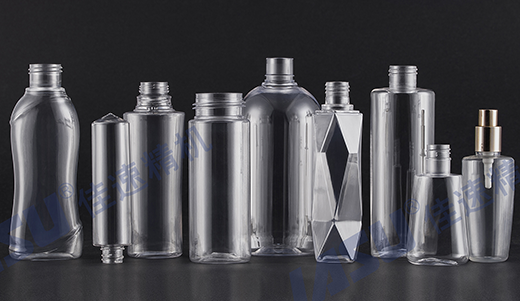

Cosmetic & Personal Care
Perfect for perfume bottles, shampoo bottles, shower gel containers, cream jars, and lotion bottles. Supports PET, PETG, and TRITAN, delivering high transparency, uniform wall thickness, and stylish designs.

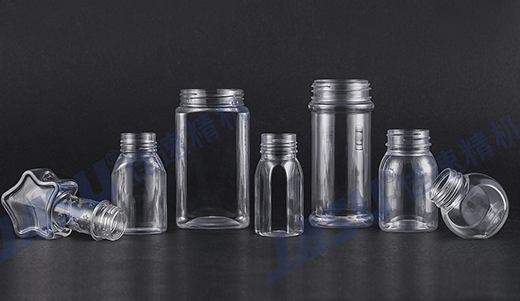

Food & Beverage
Suitable for water bottles, juice bottles, baby feeding bottles, sport drink bottles, and wide‑mouth food jars. Compatible with food‑grade PET, PP, and TRITAN (BPA‑free), ensuring safety and durability.
Household & Industrial

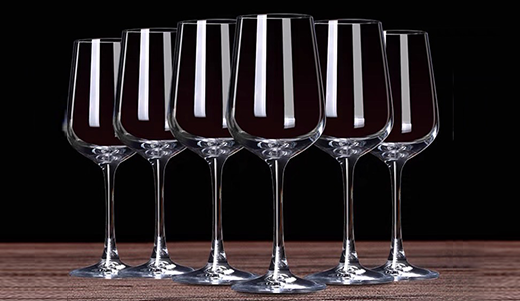

Widely used for LED lamp covers, PC light diffusers, plastic cups, jugs, and irregular industrial containers. Processes PC, PS, and PMMA, offering high impact resistance and stable performance.
Case
Pharmaceutical Packaging Project (Bangladesh)
Machine: One‑step ISBM machine with multi‑cavity PET pharmacy bottle molds. Application: Medicine bottles, eyedropper bottles, oral liquid bottles, and syrup bottles. Volume Range: 15ml, 30ml, 60ml, 100ml, 120ml, 200ml, 450ml. Outcome: High‑precision, hygienic containers meeting local pharmaceutical standards.

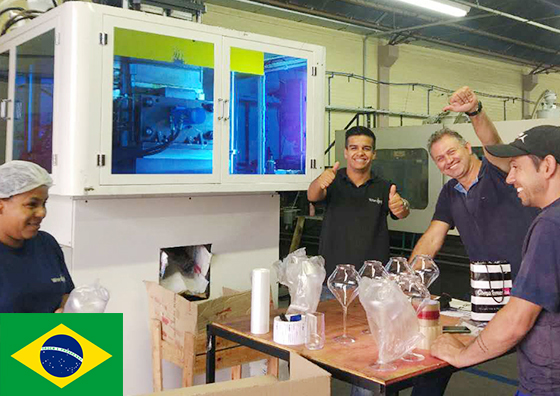

Luxury Tableware Project (Brazil)
Machine: ISBM machine customized with PC wine goblet molds. Application: PC wine goblets, juice jugs, beer jugs, and milk‑tea jugs. Features: High transparency, impact resistance, and elegant finish. Outcome: Premium tableware for food service and retail markets.
Baby & Sports Bottle Project (Turkey)
Machine: ISBM machine for BPA‑free TRITAN/PCTG bottles. Application: Baby feeding bottles, student water bottles, and sport bottles. Volume Range: 250ml to 2000ml. Outcome: Safe, durable, and eco‑friendly products for daily use.
Cosmetic & Food Jar Project (Russia & Thailand)
Russia: PET cosmetic bottle lines for shampoo, shower gel, and perfume bottles. Thailand: PET jar lines for food packaging (30ml–1400ml). Common Benefits: Uniform wall thickness, high clarity, and cost‑effective production.
Contact Us
We are ready to provide professional one‑stop solutions for your injection stretch blow molding machine needs. For inquiries about product details, customization, quotation or after‑sales service, please feel free to contact us.
